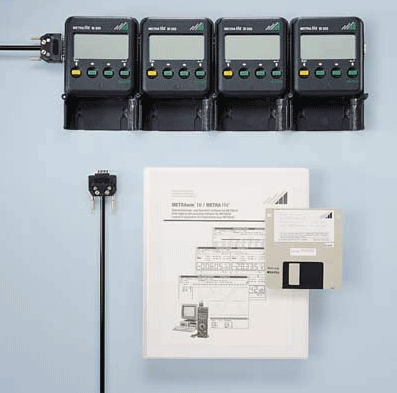

• In addition to multimeter hardware the 1-Ch-Pack includes
everything required for setting up a siagle-channel recording
system Acquired data are transmitted to the SI232-ll adapter
via
the infrared interface, which is electrically isolated from
the
multimeter. Data can be stored to interediate memory on-site
and subsequently transmitted to the PC back at the office, or can be transmitted onlile.
METRAwin 10 analyzes and display
acquired data.

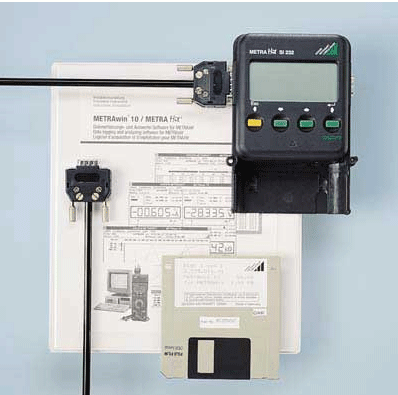

• In addition to multimeter hardware the 1-Ch-Pack includes
everything required for setting up a siagle-channel recording
system Acquired data are transmitted to the SI232-ll adapter
via
the infrared interface, which is electrically isolated from
the
multimeter. Data can be stored to interediate memory on-site
and subsequently transmitted to the PC back at the office, or can be transmitted onlile.
METRAwin 10 analyzes and display
acquired data.
•

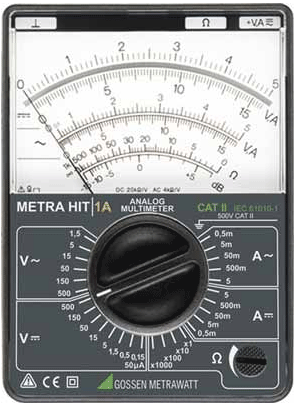

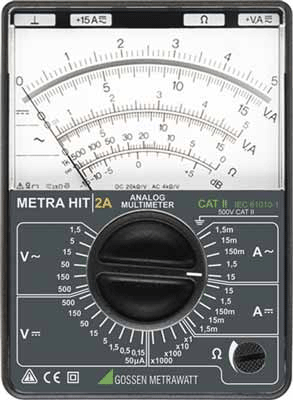

9 voltage measuring ranges V~:
100 mV, 300mV, 1V, 3V, 10V, 30 V, 100 V, 300 V and 600V •
7 current measuring ranges, A~:
10μA, 100μA, 1mA, 10 mA, 100 mA, 1A and 10A •
5 resistance measuring ranges: 1 Ω...2kΩ/10Ω ... 20kΩ/
100Ω ... 200 kΩ/ 1kΩ ... 2 MΩ/10kΩ ...20 MΩ •
9 level measuring ranges: -40 dB ...+62dB •
High input
resistance of 10 MΩ for
no-load voltage measurement •

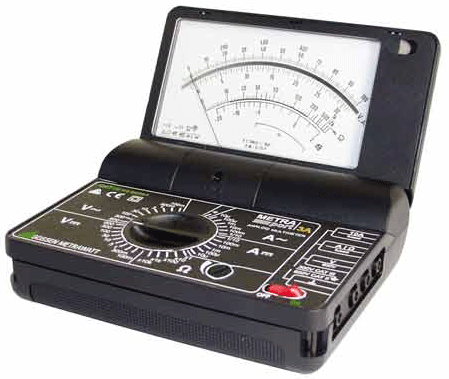

Reflective scale in folding lid which can be tilted for easy
reading and provides tranport protection as well
accuracy class 1.5 •
Overload protection: 600 V~
in all functions and range settings •
Automatic battery shutdown when instrument is folded closed

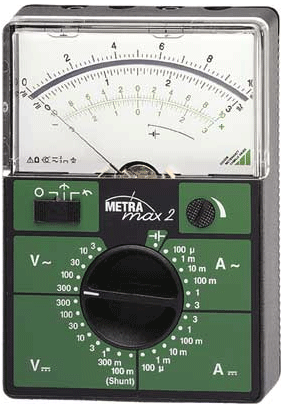

• Voltage measurement:
• 0 ... 100/300 mV/1 V=; 0 ... 3/10/30/100/300 V=/~
• Current measurement:
0 ... 100 μA/1/10/100 mA/1/3A =/~
• Zero point: Selectable on the left or at mid-scale
• Accuracy: Class 2=/3~
รายละเอียด

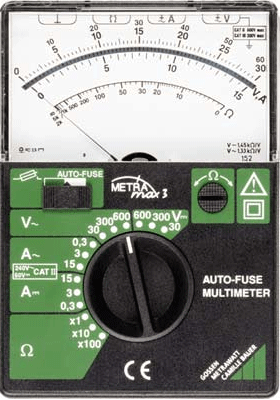

METRA max 3
• Direct and alternating voltage to 600V
• Direct and alternating current to 15A
• Resistance from 1 Ω to 300 kΩ
•
3 measuring ranges per measuring function
• Interruted conductors are recognized by means
of internal resistance of approximately 1 kΩ/V • Excellent overload protection thanks
to
protective relay and PTC thermistors
รายละเอียด

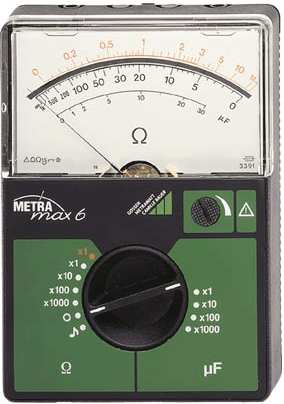

METRAmax 6
•
Resistance measuring instrument with analog display for use in the
plant,on service
calls and for installation work •
Measuring method: current measurement • Large
variety of measuring from 0.05°
1 M Ohm ( 5 ranges ) • Ranges
for rough capacitance measurement from 0 to 30000 uF •
Integrated buzzer for continuity testing •
Rugged moving-coil mechanism with spring loaded jewels allows
for
use underadverse operating conditions •
Dimensions: 100 x 140 x 354 mm, weight: approx. 0.3 kg
without
battery •
Battery: 1.5 V IEC LR 6 ( AA mignon ) รายละเอียด
Manual

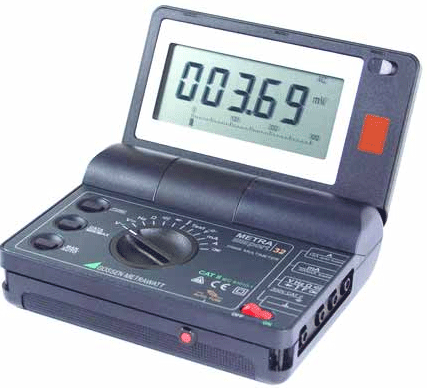

METRAport 32S
•
Precision multimetee, resolution: 10uV, 10 nA, 10 mOhm • TRMS
measurement of V AC and I AC up to 1 kHz •
Voltage measurement: 300 mV, 3/30/300/600VDC/AC •
Current measurement: 300 uA, 3/30/300 mA, 15ADC/AC direct,
via transducer or via current sensor with voltage output •
Resistance measurement: 300 Ohm. 3/30/300 kOhm,3/30MOhm •
Frequency measurement: 300 Hz, 3/100 kHz •
Capacitance measurement: 30/300 nF, 3/30/300/3000/30000uF •
Measured value storage and MIN-MAX recording •
Overload and blown fuse indication •
Temperature measurement with automatic Pt sensor
recognition: Pt100,Pt1000 •
Automaic and manual measuring range selestion •20
mm digital dissplay with supplementary analog scale • DKD
certificate and 3 year guarantee •
Dimensions: 146 x 118 44 mm •
Weight: approx. 450 gr. including batteries

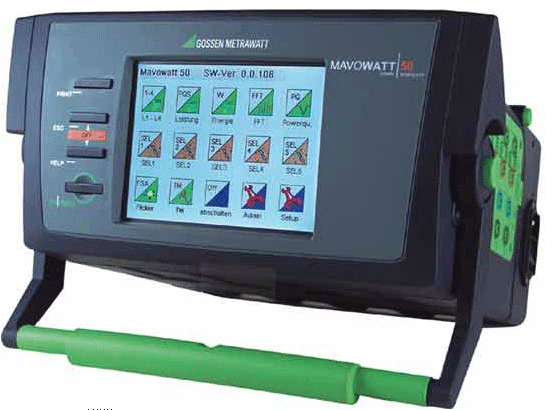

• Complete power
disturbance analysis with simultaneous of all
relevent mains quantities
• Power and energy analysis in power supply systems, as well
as well as atthe outputs of frequency converters
• Harmonic analysis up to the 50th harmonic including sub-harmonics
• Mains quality per EN50160 with statistical bar graph ( Quick View
) • Flicker analvsis in accordance with
EN 61000-4-15
• 8 isolated measuring circuits ( 4 voltage and 4 current ) 100 kHz
sampling rate per measuring rate per measuring ciruit
• Color touch-screen display 5½
¼ VGA •
Storage of measurement data / settings to plug-in CF memory • USB interfaces for PC, external
printer/memory/keyboard • Ethernet TCP/IP with integrated web
server for remote control
and read-out • 4
digital statusinputs for
indicating consumer operating states • 4 digital control inputs for
synchronizing the measuring interval
and for use as meter inputs • 1 relay output for alarms • Power
supply output for active current sensors •
Integrated rechargeable battery with charging controller for
power failures • Worldwide use is made possible with a
brosd range variable power l
pack ( 85 to 250 VAC/DC ) •
Functionally covered standards: EN 50160, EN6100-3-2,/-3-3/ -3-12,/-4-7,/-4-15,-4-30
•

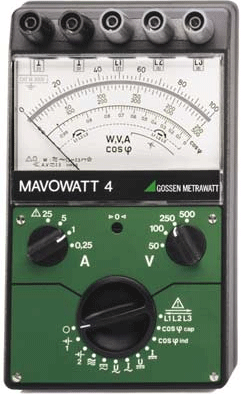

Determination of reactive power •
Measurement of phase-to-phase voltage(S) • Ideal
instrument for munufacturing, service and installation • Phase
sequence indicator • cosphi
measurement • Direct
current 12.5 kW •
Single-phase alternating current 12.5 kW ( active power ) •
3-wire, 3-phase, balanced load: 25 kW ( active power ), 25 kVar x
V3 ( reactive power ) •
Nominal current 0.25 A/1A/5A/25A •
Nominal voltage 50/100/250/500V •
Frequency range 10Hz ... 400 Hz • AC/DC
voltage measurement 50/100/250/500V • AC/DC
current measurement 0.25A/1A/5A/25A •
Accuracy class 1.5 ( 2.5P-U,I ) • Power
supply 2ea. 9 V flat cell, IEC 6 F 22 •
Dimensions 110x181x62 mm รายละเอียด
Manual

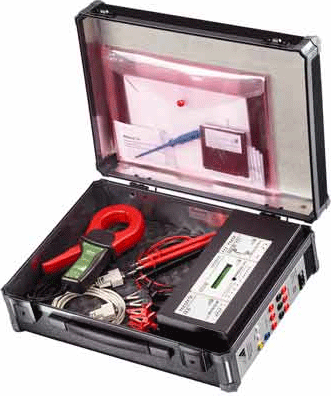

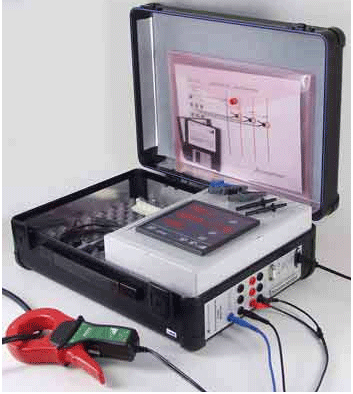

MAVOLOG 10 Mobil-Set
• MAVOLOG 10S+FFT/FST/FSA voltage
analyyzer •
MAVOLOG PS/C power pack and interface
converter
• MAVOLOG BP battery pack
Wired and installed in a sturdy carrying case ( 46 x16x35 cm )
Included accessories:
• Connector cables for mains power and voltage measurement inputs including alligator clips
and RS 232 interface
• METRAwin 10 for MAVOLOG parameters
configuring and analysis
Software
• Apactical solution for occasional mobile use: The A2000 Mobile
Set consisting of the following components:
• A2000 Multifunctional
Power Meter
• Wired and installed in a sturdy case ( 46x16x35cm ) Included
accessories: • Connector cables for mains power and voltage
measurement input including alligator clips and RS 232
interface
• METRAwin 10 for A2000 parameters configuring and analysis
Software รายละเอียด
