  ËÁÇ´ÊÔ¹¤éÒ Energy Management

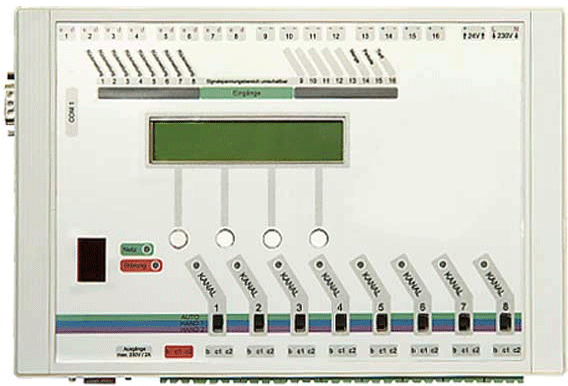

Peakl Load Optimizing System

• Minimal interference timer production process thanks to combined
  trend-extrapolation process
• Can be expanded in steps for 8 to 64 optimzing chanels
• Simultaneous optimization of various media, e.g. electrical power and
  and gas
• Future oriented setpoint management with specifition of the load
  profile for 7 days with 96 values each

• Inputs for operating feedback from the consumers
Takes minimum and maximum making and times of the power
   consumers into  consideration
• Special control programs for kitchen optimization


<<ÃÒÂÅÐàÍÕ´
>>

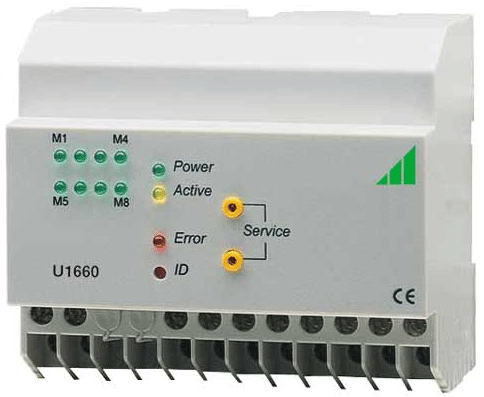

U1660 LON - Add- On Component

• 8 SO inputs ( DIN 43864 ) or floating contacts. Required power is
  supplied by the data collector module.
• Status display for each input
• Status displays for operating voltage, data communications and
  module errors

ETT-10A LON interface
• 24 VDC auxiliary power supply power consumption: 100mA
• Mounts to top-hat rail per DIN 50022



             <<ÃÒÂÅÐàÍÕ´>>

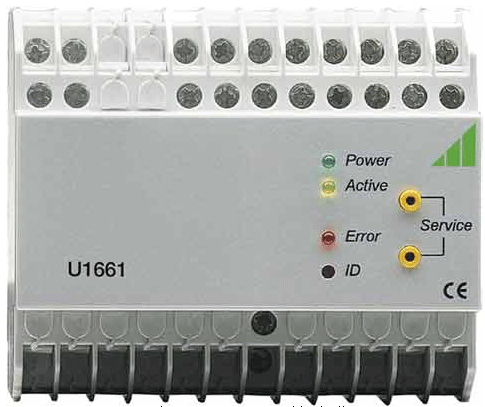

1661 LON Supplementary Component

• 6 inputs, 0 ... 20mA or
6 inputs, 0 ... 10 V with common ground
• Status displays for operating voltage, data communications and
  module errors

ETT-10A LON interface
• 24 VDC auxiliary power supply power consumption: 100mA
• Mounts to top-hat rail per DIN 50022



    <<ÃÒÂÅÐàÍÕ´>>

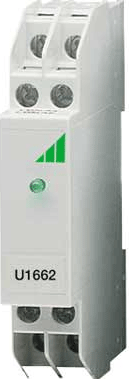

U1662 LON Supplementary Component Repeater

The U1662 repeater is used for the LON interface at the U1601
   summator and the U1603 mini-summator
LON cable lenght is limited depending upon the type of cable used
  and topology. The cable lenght can be doubled the use of a repeater.
• No more than ope repeater may be installed between individual LON
  users due to timing considerations

• Status display for operating volatge

• 2 FTT - 10 A LON interfaces
• 24 VDC auxiliary power supply, power consumption: 26 mA
• Mounts to top-hat rail per DIN 50022

                                                                                                        <<ÃÒÂÅÐàÍÕ´>>

U1664 LON Supplementary Component Bus Tesminater

• The U1664 repeater is used for the LON interface at the U1601
  summator, the  U1602 microsummator and the U1603 mini-summator
• The U1664 bus termination is necessary for LON bus topologies in
   order to terminate the rear end of the with resistance of 52.2 Ohms.
   bus termination which is integrated into the summator is used at the
   front end of the bus.

The termination integrated into the summator is sufficient if free
   topology is used, and  must be set to 105 Ohms. This also applies
   in principal to bus segments which have been extended through
   the use of a repeater
• One 105 Ohm bus termination for double termination
• One 52.5 Ohm bus termination for double termination
• Mounts to top-hat rail per DIN 50022

                                                                                                         <<ÃÒÂÅÐàÍÕ´>>

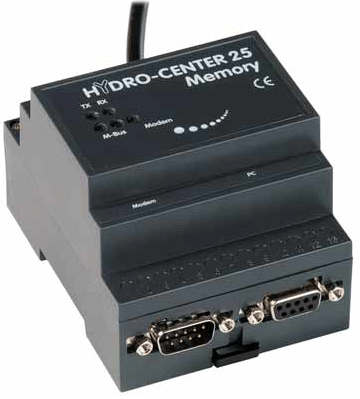

HC 25 Memory

• M-bus networks with cable lengths of < 1km
 RS 232 interface for PC or modem
• Data logger memory and real-time clock
• M-bus baud tates: 300 and 2400 baud
 230V AC, 50 Hz supplay power ( 120 V AC version available as well )
Rail mount housing in circuit breaker profile
   73 mm wide ( 5 standard width units )

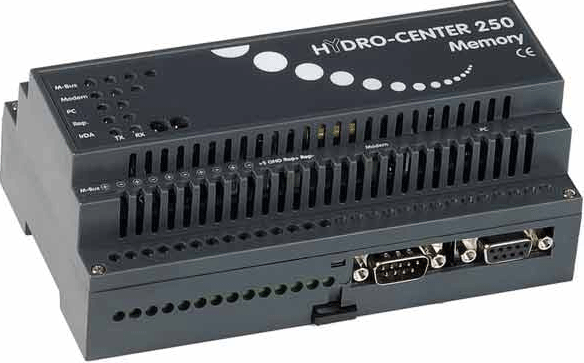

HC 60/250 Memory

• Expansive M-bus networks with cable lenghs of > 1 km
 RS 232 interfaces for PC or modem, M-bus input, optical IrDA
  interface
• Data logger memory and real-time clock
 M-bus baud rater: 300, 2400 and 9600 baud
Supplay powre
  HYDRO-CENTER 60: 11 to 38 V DC or 15 to 38 V AC
  HYDRO-CENTER 250: 20 to 38 V DC or 24 to 38 V AC

Railmount housing in ciruit breaker profile, 157 mm wide
 ( 9 standard width units )

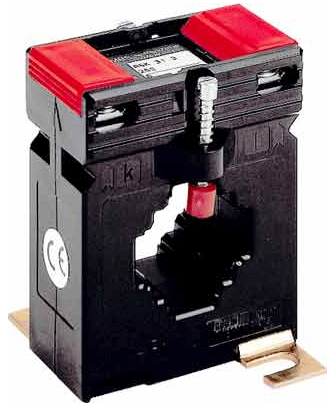

HC Plug-in current Transformer ASK 31/412

Busbar mounting screw tightening torque              2...3Nm
Max. voltage for electrical equipment                     0.72 kV
Um ( RMS ) = max. allowable operating voltage
rated shourt-duration power-frequency withstand voltage 3 kV
( RMS ) = test voltage

Operating temperature range ( no condensation )
   -5...40°C
Rated continuous thermal currunt                         1.0 x In
Rated short-time thermal current                          50 - 60 Hz

Rated frequency

Insution class                                                      E
Overcurrent limitting factor ( FS )                          FS 5 to 1000A

                                                                        FS 10 as of 1600A

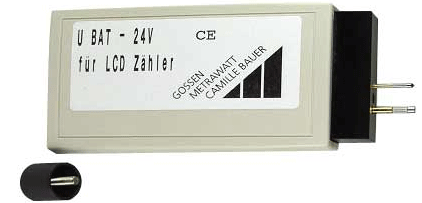

Battery Pack for Readng UBAT - 24V

• The electrical energy meter takes supply power from active
   line voltages during normal operation
• The meter with and external auxiliary power input ( feature H1 )
   can nevertheless be read with the hepl of the UBAT-24V battery

   pack. The spring pins with reverse polarity protection make
   contact with the terminals of the terminals of the auxiliary power

  input through various holes in the closed terminal cover to thia end

  the display is activated
